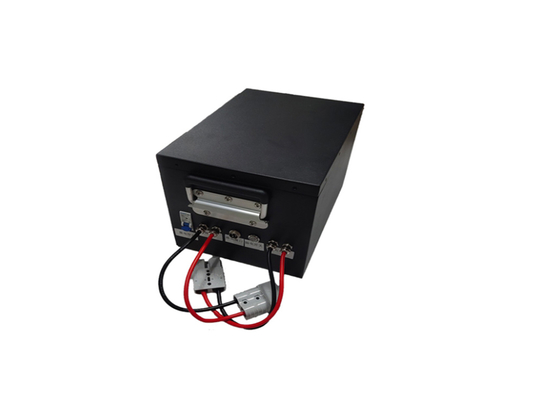

25.6v 75ah LiFePo4 Battery for Automated Guided Vehicles Optimized for Maximum Runtime and Load Capacity

  • 25.6v 75ah LiFePo4 Battery for Automated Guided Vehicles Optimized for Maximum Runtime and Load Capacity
Lugar de origen PORCELANA
Nombre de la marca JHOTA
Cantidad de orden mínima 5
Precio Negociable
Detalles de empaquetado Caja de cartón
Tiempo de entrega 20-30 días
Condiciones de pago T/T
Capacidad de la fuente 500 piezas

Éntreme en contacto con gratis las muestras y los vales.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Nombre del producto Batería de estación base de la comunicación Voltaje nominal 25.6V
Capacidad nominal 75ah Vida en bicicleta 2000 veces
Garantía 5 años
Resaltar

25.6v 75ah LiFePo4 battery for AGVs

,

lithium battery for automated guided vehicles

,

LiFePo4 battery with high load capacity
Deja un mensaje
Descripción de producto
25.6v 75ah LiFePo4 Battery for Automated Guided Vehicles Optimized for Maximum
Runtime and Load Capacity
Specification
Item Parameter
Nominal Voltage 25.6V
Rated Capacity Nominal Capacity: 75Ah
Charging Voltage 29.2V
Charging Method Constant Current / Constant Voltage
Discharge Cut-off Voltage 18.4V
Rated Charging Current ≤30A
Maximum Continuous Charging Current ≤50A
Internal Resistance <100mΩ
Rated Discharge Current ≤30A
Maximum Continuous Discharge Current ≤50A (not exceeding 1 hour)
Overcharge Protection Voltage 3.65±0.05V (adjustable)
Over-discharge Protection Voltage 2.3±0.01V (adjustable)
Overcurrent Protection Discharge overcurrent value: ≥200A
Short Circuit Protection

Condition: External circuit short, Recovery:

Disconnect short circuit
Operating Temperature Range Charge: 0~55°C, Discharge: -20~55°C
Storage Temperature Range Less than 7 days: 20~65°C
Weight Approx. 15kg
Dimensions Customizable
Product Description:
25.6v 75ah LiFePo4 Battery for Automated Guided Vehicles Optimized for Maximum Runtime and Load Capacity 0
Advantages:
1. Extended Operational Runtime and High Energy Density;
2. Superior Power Delivery for Demanding Tasks;
3. Enhanced Safety and Robust Battery Protection;
4. Wide Operating Temperature Range for Reliability
25.6v 75ah LiFePo4 Battery for Automated Guided Vehicles Optimized for Maximum Runtime and Load Capacity 1
Application:

1.Goods-to-Person Systems: Powers AGVs that transport entire shelves of inventory to picking stations, requiring sustained high energy

for continuous movement and lifting.

2.Pallet Transport: Provides the necessary current surge for heavy-duty forklift AGVs to lift and move palletized goods (500kg - 1000kg+).

3. Sortation and Distribution: Fuels AGVs in parcel sorting hubs, enabling rapid acceleration, constant travel, and high throughput with

minimal charging downtime.

25.6v 75ah LiFePo4 Battery for Automated Guided Vehicles Optimized for Maximum Runtime and Load Capacity 2

Our Factory
25.6v 75ah LiFePo4 Battery for Automated Guided Vehicles Optimized for Maximum Runtime and Load Capacity 3
Packing&Shipping
25.6v 75ah LiFePo4 Battery for Automated Guided Vehicles Optimized for Maximum Runtime and Load Capacity 4
